ForkJoin
The ForkJoinPool was added to Java in Java 7. The ForkJoinPool is similar to the Java ExecutorService but with one difference. The ForkJoinPool makes it easy for tasks to split their work up into smaller tasks which are then submitted to the ForkJoinPool too. Tasks can keep splitting their work into smaller subtasks for as long as it makes to split up the task. It may sound a bit abstract, so in this fork and join tutorial I will explain how the ForkJoinPool works, and how splitting tasks up work.
The fork and join principle consists of two steps which are performed recursively. These two steps are the fork step and the join step.

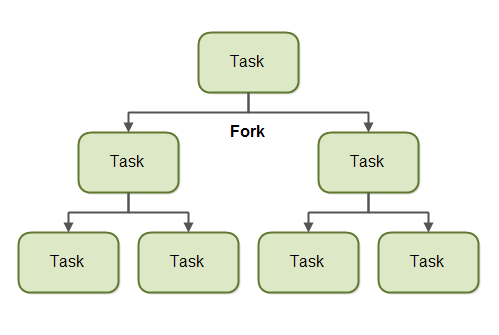

A task that uses the fork and join principle can fork (split) itself into smaller subtasks which can be executed concurrently. This is illustrated in the diagram below:
By splitting itself up into subtasks, each subtask can be executed in parallel by different CPUs, or different threads on the same CPU.
A task only splits itself up into subtasks if the work the task was given is large enough for this to make sense. There is an overhead to splitting up a task into subtasks, so for small amounts of work this overhead may be greater than the speedup achieved by executing subtasks concurrently.
The limit for when it makes sense to fork a task into subtasks is also called a threshold. It is up to each task to decide on a sensible threshold. It depends very much on the kind of work being done.
When a task has split itself up into subtasks, the task waits until the subtasks have finished executing.
Once the subtasks have finished executing, the task may join (merge) all the results into one result. This is illustrated in the diagram below:
The ForkJoinPool is a special thread pool which is designed to work well with fork-and-join task splitting. The ForkJoinPool located in the java.util.concurrent package, so the full class name is java.util.concurrent.ForkJoinPool.
Creating a ForkJoinPool You create a ForkJoinPool using its constructor. As a parameter to the ForkJoinPool constructor you pass the indicated level of parallelism you desire. The parallelism level indicates how many threads or CPUs you want to work concurrently on on tasks passed to the ForkJoinPool. Here is a ForkJoinPool creation example:
ForkJoinPool forkJoinPool = new ForkJoinPool(4);
Submitting Tasks to the ForkJoinPool You submit tasks to a ForkJoinPool similarly to how you submit tasks to an ExecutorService. You can submit two types of tasks. A task that does not return any result (an "action"), and a task which does return a result (a "task"). These two types of tasks are represented by the RecursiveAction and RecursiveTask classes. How to use both of these tasks and how to submit them will be covered in the following sections.
A RecursiveAction is a task which does not return any value. It just does some work, e.g. writing data to disk, and then exits. A RecursiveAction may still need to break up its work into smaller chunks which can be executed by independent threads or CPUs. You implement a RecursiveAction by subclassing it. Here is a RecursiveAction example:
mport java.util.ArrayList;
import java.util.List;
import java.util.concurrent.RecursiveAction;
public class MyRecursiveAction extends RecursiveAction {
private long workLoad = 0;
public MyRecursiveAction(long workLoad) {
this.workLoad = workLoad;
}
@Override
protected void compute() {
//if work is above threshold, break tasks up into smaller tasks
if(this.workLoad > 16) {
System.out.println("Splitting workLoad : " + this.workLoad);
List<MyRecursiveAction> subtasks =
new ArrayList<MyRecursiveAction>();
subtasks.addAll(createSubtasks());
for(RecursiveAction subtask : subtasks){
subtask.fork();
}
} else {
System.out.println("Doing workLoad myself: " + this.workLoad);
}
}
private List<MyRecursiveAction> createSubtasks() {
List<MyRecursiveAction> subtasks =
new ArrayList<MyRecursiveAction>();
MyRecursiveAction subtask1 = new MyRecursiveAction(this.workLoad / 2);
MyRecursiveAction subtask2 = new MyRecursiveAction(this.workLoad / 2);
subtasks.add(subtask1);
subtasks.add(subtask2);
return subtasks;
}
}
This example is very simplified. The MyRecursiveAction simply takes a fictive workLoad as parameter to its constructor. If the workLoad is above a certain threshold, the work is split into subtasks which are also scheduled for execution (via the .fork() method of the subtasks. If the workLoad is below a certain threshold then the work is carried out by the MyRecursiveAction itself. You can schedule a MyRecursiveAction for execution like this:
MyRecursiveAction myRecursiveAction = new MyRecursiveAction(24);
forkJoinPool.invoke(myRecursiveAction);
A RecursiveTask is a task that returns a result. It may split its work up into smaller tasks, and merge the result of these smaller tasks into a collective result. The splitting and merging may take place on several levels. Here is a RecursiveTask example:
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.RecursiveTask;
public class MyRecursiveTask extends RecursiveTask<Long> {
private long workLoad = 0;
public MyRecursiveTask(long workLoad) {
this.workLoad = workLoad;
}
protected Long compute() {
//if work is above threshold, break tasks up into smaller tasks
if(this.workLoad > 16) {
System.out.println("Splitting workLoad : " + this.workLoad);
List<MyRecursiveTask> subtasks =
new ArrayList<MyRecursiveTask>();
subtasks.addAll(createSubtasks());
for(MyRecursiveTask subtask : subtasks){
subtask.fork();
}
long result = 0;
for(MyRecursiveTask subtask : subtasks) {
result += subtask.join();
}
return result;
} else {
System.out.println("Doing workLoad myself: " + this.workLoad);
return workLoad * 3;
}
}
private List<MyRecursiveTask> createSubtasks() {
List<MyRecursiveTask> subtasks =
new ArrayList<MyRecursiveTask>();
MyRecursiveTask subtask1 = new MyRecursiveTask(this.workLoad / 2);
MyRecursiveTask subtask2 = new MyRecursiveTask(this.workLoad / 2);
subtasks.add(subtask1);
subtasks.add(subtask2);
return subtasks;
}
}
